Applications:

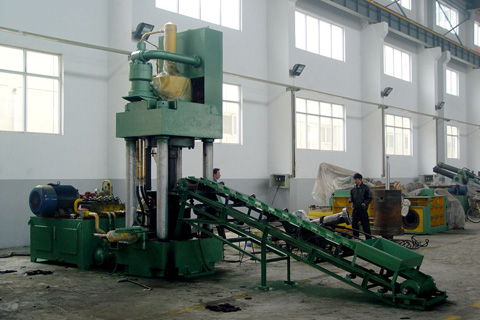

Y83 scrap briquetting presses (hydraulic briquetting machines) are applied to compress metal chips or sawdust (steel, cast iron, aluminum & copper) into high density briquettes to reduce burning loss during smelting. Cast iron briquettes, can substitute pig iron as raw material.
Features:
> Hydraulic drive, operation stable, no vibration, safe & reliable.
> Need simple foundation.
> PLC control, manual or automatic operation optional.
| Model | Cyl. Force (kN) | Press Mould (mm) | Pressure on Briquet (MPa) | Briquet Size (mm) | Briquet Weight - Cast Iron (kg) | Production Rate (kg/hr) | Motor (kW) |
| Y83-250 | 2000+550 | Φ110×180 Φ120×180 |
263 221 |
Φ110×(50-70) Φ120×(50-70) |
2.6-3.7 2.9-4.1 |
800-900 | 18.5 |
| YE83-250 | 2000+550 | Φ110×300 Φ120×300 |
263 221 |
Φ110×(70-100) Φ120×(70-100) |
3.6-5.2 4.1-5.9 |
1000-1100 | 22 |
| YE83-315 | 2850+550 | Φ120×300 | 278 | Φ120×(70-100) | 4.4-6.3 | 1100-1200 | 30 |
| Y83-400 | 3450+550 | Φ140×300 | 260 | Φ140×(70-100) | 5.9-8.5 | 1200-1300 | 30 |
| YE83-500 | 4900+600 | Φ150×300 Φ180×300 200×200×400 |
283 196 125 |
Φ150×(70-100) Φ180×(70-100) 200×200×(60-100) |
6.9-9.9 8.9-12.8 Precompression for Chips |
1300-1800 1300-1800 Precompression for Chips |
45 45 55 |
| YE83-400W | 3450+550 | Φ140×300 | 260 | Φ140×(70-100) | 5.9-8.5 | 2000-3000 | 45+15 |
| YE83-500W | 4500+800 | Φ150×300 Φ180×300 |
260 196 |
Φ150×(70-100) Φ180×(70-100) |
6.9-9.9 8.9-12.8 |
2300-3500 | 55+22 |
| YE83-630W | 5500+800 | Φ160×300 Φ200×300 |
260 200 |
Φ160×(70-100) Φ200×(70-100) |
7.7-11 10.3-14.7 |
2600-3900 | 2×55 |
