Applications:

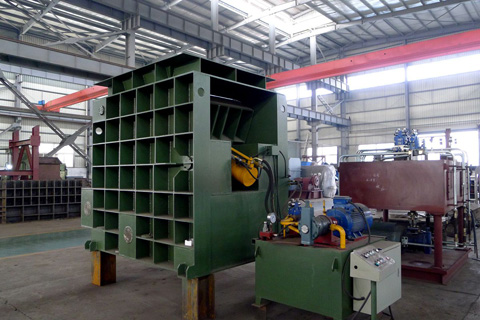

The casting crusher is applied to crush automotive engines, and to squeeze reducer boxes, gearbox shells, casting heads, etc.
Features:
>Hydraulic drive, large squeezing force, stable operation, no vibration;
>Structure of dual movable jaws, wide range of adjustment at bottom exit, suitable for squeezing & crushing different types of materials.
No. | TECH SPEC: Casting Crusher PSJ-100 | ||||
1 | Crushing Cylinder | Type Rated Force |
YG240/160-450 1000 kN |
Stroke QTY. |
450 mm 1 PC |
2 | Infeed Opening Size | 1000×1000 mm | |||
3 | Discharging Opening Size | 1000×170 mm | |||
4 | Hydraulic System Pressure | 25 MPa | |||
5 | Upper Crushing Force | 1000 kN | |||
6 | Under Crushing Force | ≥ 5000 kN | |||
7 | Production Rate | 5-6 tons/hr (Casting Head) | |||
8 | Idle Cycle Time | 10 Sec |
