Applications:

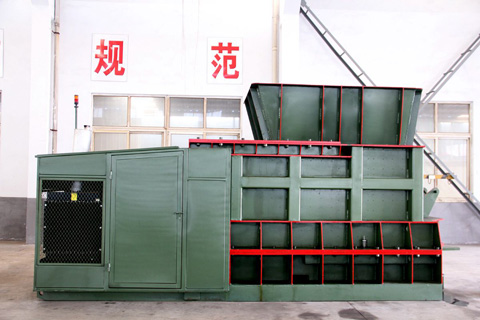

QW horizontal shear is applied in ferrous & nonferrous enterprises, National Recycling Economical Parks, National Urban Minerals Demonstration Bases, scrap steel processing & distribution centers, scrap auto dismantling & recycling companies, other permanent or temporary scrap yards, suitable for cutting light scrap materials, such as aluminum profiles, copper/aluminum cables & strips, car bodies, empty tanks, paint drums, re-bars, PVC pipes and bands, etc.
Both QW-400 & QW-630 are mobile, with electrical motors or diesel engine as optional power supply. QW-400 is suitable for container loading.
Features:
> Whole machine in one piece, mobile in the scrap yard;
> Remote controller as standard or optional configuration to ensure safety of operation;
> Pre-compression is fast, cutting efficiency is high;
> Put on hard floor, no need pit foundation, use scrap grapple, lifting magnet or conveyor for feeding material.
| No. | Tech Spec \ Model No. | QW-400A | QW-400B | QW-630 | |
| 1 | Cutting Cylinder | Type | YG320/220-830 | YG320/220-830 | YG400/280-830 |
| Rated Force | 2000 kN | 2000 kN | 3150 kN | ||
| Stroke | 830 mm | 830 mm | 830 mm | ||
| Qty. | 2 PCS | 2 PCS | 2 PCS | ||
| 2 | Pressing Cylinder | Type | YG250/180-870 | YG250/180-870 | YG280/200-870 |
| Rated Force | 1250 kN | 1250 kN | 1700 kN | ||
| Stroke | 870 mm | 870 mm | 870 mm | ||
| Qty. | 1 PC | 1 PC | 1 PC | ||
| 3 | Hydraulic System Pressure | 28 MPa | 28 MPa | 28 MPa | |
| 4 | Feed Opening (L×W) | 2000×1400 mm | 2000×1400 mm | 2000×1400 mm | |
| 5 | Cutting Blades (L×H) | 1400×420 mm | 1400×420 mm | 1400×420 mm | |
| 6 | Cutting Speed (times/min) | 2-3 | 2-3 | 2-3 | |
| 7 | Production Rate (tons/hr) | 2.5-4.5 | 2.5-4.5 | 2.5-4.5 | |
| 8 | Total Installed Power (kW) | 121 | 75 | 90 | |
| 9 | Max. Cutting Size (δb≤440N/mm2) | Round Steel | φ110 mm | φ110 mm | φ135 mm |
| Square Billet | 100×100 mm | 100×100 mm | 120×120 mm | ||
| Angle Steel | 180×180×15 mm | 180×180×15 mm | 200×200×15 mm | ||
| I-beam | 320×132×11.5 mm | 320×132×11.5 mm | 320×132×15 mm | ||
| 10 | Diesel Engine / Electric Motor | Type | 6BTA5.9-G2 | Y200L-4 | YE3-225M-4/B35 |
| Rated Power | 106 kW | 30 kW | 45 kW | ||
| Rated Speed | 1500 rpm | 1470 rpm | 1480 rpm | ||
| Qty. | 1 SET | 2 SETS | 2 SETS | ||
| 11 | Piston Pump | Type | A4V180+A4V180 | 160YCY14-1B | A4V250 |
| Max. Flow Rate | 180+180 ml/r | 160 ml/r | 250 ml/r | ||
| Max. Pressure | 35 MPa | 31.5 MPa | 35 MPa | ||
| Qty. | 1 SET | 2 SETS | 2 SETS | ||
| 12 | Cooling of Hydraulic Oil | Air Cooling | Air Cooling | Water Cooling | |
| 13 | Oil Tank Volume | 1.6 m3 | 1.8 m3 | 1.8 m3 | |
| 14 | Operation of Machine | Push Button + Remote Ctrl | Push Button Ctrl | Push Button Ctrl | |
| 15 | Main Machine Weight | 23 MT (Mechnical 16-18 MT) | 22 MT | 35 MT | |
| 16 | Dimensions (mm) | 5700×2100×2200 | 5700×2100×2200 | 5900×2100×2600 | |
