Applications:
Y81 scrap metal balers are applied in steel mills, recycling plants, ferrous & nonferrous smelting industry to press scrap metal (steel, copper, aluminum, stainless steel, discarded automobiles, etc) into acceptable furnace charges in shapes of cuboids, cylinders & octagons.
Features:
> Hydraulic drive, manual valve or PLC operation.

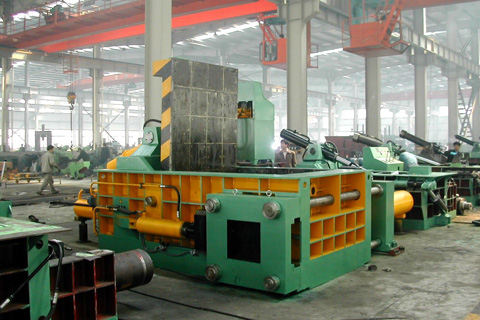

> Bale-discharging: side ejection, front ejection, turn bale (side turn bale, front turn bale), & manual discharging.
> Options for different force, press box size, bale shape & size.
> Electrical motor, diesel engine or generator for power.
| Scrap Metal Baler (3-way Compression, Side Ejection) | ||||||
| Model | Main Cyl. Force (Ton) | Press Box Size (mm) | Bale Size (mm) | Bale Weight (kg) | Capacity (ton/hr) | Motor (kW) |
| YE81T-63B | 63 | 1200×600×550 | 200×200 | 15-30 | 0.4-0.8 | 11 |
| YE81T-100C | 100 | 1300×600×600 | 300×300 | 40-50 | 1.0-1.2 | 15 |
| YE81T-125A | 125 | 1200×700×600 | 240×240 | 40-50 | 1.0-1.2 | 18.5 |
| YE81T-125B | 125 | 1400×700×700 | 300×300 | 60-90 | 1.5-2.0 | 22 |
| YE81T-125D | 125 | 1400×1000×700 | 300×300 | 70-100 | 1.5-2.5 | 45 |
| YE81T-125H | 125 | 1600×1200×800 | 300×300 | 90-120 | 1.8-2.8 | 45 |
| YE81T-160A | 160 | 1600×1000×800 | 400×400 | 100-180 | 2.0-3.5 | 22 |
| YE81T-160B | 160 | 1600×1200×800 | 400×400 | 100-200 | 2.0-4.0 | 45 |
| YE81T-200B | 200 | 1600×1200×800 | 400×400 | 120-220 | 2.5-4.5 | 45 |
| YE81T-200C | 200 | 1800×1400×1000 | 400×400 / 450×450 | 180-350 | 3.5-6.0 | 2×22 |
| YE81T-200M | 200 | 1600×1200×1000 | 400×500 | 150-280 | 3.0-5.5 | 2×30 |
| YE81T-250C | 250 | 2000×1400×1200 | 450×450 / 500×500 | 250-450 | 4.5-7.0 | 2×30 |
| Y81T-250Z1 | 250 | 2000×1400×700/350 | 350×350 | steel can 90-120 | steel can 2.5-3.0 | 2×22 |
| YE81T-315A | 315 | 2000×1400×1200 | 450×450 | 250-450 | 5.0-8.0 | 2×45 |
| Y81T-315B | 315 | 2500×2000×1200 | 600×600 | 400-700 | 6.0-10.0 | 2×45 |
| YE81T-315B | 315 | 2600×2000×1200 | 500×600 | 400-700 | 6.0-10.0 | 2×45 |
| YE81T-400C | 400 | 3000×2000×1200 | 600×700 | 500-800 | 7.0-11.0 | 2×45 |
| YE81T-400D | 400 | 5000×2000×1200 | 700×700 | 600-900 | 8.0-12.0 | 3×45 |
| Y81T-400E | 400 | 2600×2000×1200 | 500×600 | 400-700 | 6.0-10.0 | 2×45 |
| YE81T-500 | 500 | 1600×1000×900 | 300×300 | 130-160 | 2.5-3.0 | 2×45 |
| YE81T-600 | 600 | 2800×2000×1400 | 500×500 / 530×530 | 500-800 | 7.0-11.0 | 4×45 |
