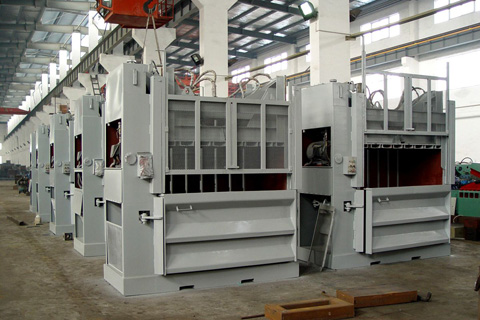

Applications:
Y82 vertical balers are applied to press and bale scrap paper (newspaper, magazines), cardboard (carton, OCC), plastic film & bottles, straw (hay), thin metal scrap, etc. The bales have uniform size and higher density, suitable for containerized transportation. Y82 vertical balers can also compress and pack textile materials like wool tops, acrylic bumps, all sorts of yarn, waste cotton, rags, pieces of cloth, woven bags and sacks, etc.
Features:
>A wide range of baling forces from 3 to 315 tons.
>Hydraulic drive, top-mounted cylinder(s).
>NOK (Japan) seals for all the cylinders.
| Paper Plastic Baler | Main Cyl. Force (Ton) | Press Box Size (L×W×H) (mm) |
Bale Size (W×H) (mm) |
Bale Weight - OCC (kg) | Production - OCC (kg/hr) | Power (kW) |
| CY3280 | 3 | 600×500×985 | 600×500 | 20-30 | 120-180 | 1.5 |
| YE82-12F | 12 | 1200×900×1170 | 1200×900 | 250-300 | 1250-1500 | 4 |
| YE82-25DC | 25 | 1520×760×1417 | 1520×760 | 300-400 | 1000-1200 | 11 |
| YE82T-25F | 25 | 1100×800×1650 | 1100×800 | 250-300 | 800-1000 | 15 |
| YE82T-35F | 35 | 1100×750×1500 | 1100×750 | 250-300 | 800-1000 | 15 |
| Y82T-63F | 63 | 1100×800×1500 | 1100×800 | 280-330 | 850-1000 | 15 |
| YE82T-100F | 100 | 1100×740×1700 | 1100×740 | 300-350 | 1000-1200 | 18.5 |
| YE82-63FB | 63 | 1100×1100×1600 | 1100×1100 | 350-450 | 1050-1350 | 15 |
| YE82-100FB | 100 | 1100×1100×1600 | 1100×1100 | 400-500 | 1200-1500 | 18.5 |
